Mono Crystal Solar Panel

(72¡Á5 180Wp~ 205Wp/72¡Á6 280Wp~ 305Wp)

¡¡¡¡¡¡¡¡¡¡




¡¡¡¡¡¡¡¡- 72¡Á5 Mono Series (180Wp-205Wp)

¡¡¡¡¡¡¡¡XH180M(72) / XH185M(72) / XH190M(72) / XH195M(72) / XH200M(72) / XH205M(72)


¡¡¡¡¡¡¡¡- 72¡Á6 Mono Series (280Wp-305Wp)

¡¡¡¡¡¡¡¡XH280M(72) / XH285M(72) / XH290M(72) / XH295M(72) / XH300M(72) / XH305M(72)



¡¡72¡Á5 Mono Series¡¡ ¡¡72¡Á6 Mono Series¡¡
¡¡Solar Cell£¨Mono-crystalline£© ¡¡125¡Á125mm ¡¡156¡Á156mm
¡¡Power Tolerance (Pmax) ¡¡0¡«+3%
¡¡Numbers of cells ¡¡72pcs of cells in series
¡¡Module Dimension ¡¡1580¡Á808¡Á35mm ¡¡1956¡Á992¡Á50mm
¡¡Weight ¡¡15kg ¡¡25kg
¡¡Max. System Voltage ¡¡1000V DC
¡¡Max. Series Fuse Rating ¡¡10A ¡¡15A
¡¡Temperature cycling range ¡¡-40¡æ¡«+85¡æ
¡¡NOTC ¡¡47¡æ
¡¡Temperature coefficients of Isc ¡¡(+0.06% /¡æ )
¡¡Temperature coefficients of Voc ¡¡(-0.35% /¡æ )
¡¡Temperature coefficients of Pmax¡¡ ¡¡(-0.4% /¡æ )
¡¡Load Capacity ¡¡300pcs /20'GP ¡¡144pcs /20'GP
¡¡728pcs /40'GP ¡¡400pcs /40'HQ





¡ö Typical Electrical Characteristics



¡¡Models
XH180M
(72)
XH185M
(72)
XH190M
(72)
XH195M
(72)
XH200M
(72)
XH205M
(72)
¡¡Max. Power (Pmax)
180Wp
185Wp
190Wp
195Wp
200Wp
205Wp
¡¡Optimum Operating Voltage (Vm)
36.42V
36.54V
36.66V
36.86V
37.26V
37.56V
¡¡Optimum Operating Current (Im)
4.94A
5.06A
5.18A
5.28A
5.37A
5.46A
¡¡Open-circuit Voltage (Voc)
44.88V
45.18V
45.38V
45.50V
45.62V
45.74V
¡¡Short-circuit Current (Isc)
5.44A
5.52A
5.58A
5.63A
5.66A
5.69A
¡¡Cells efficiency
16.5%
16.9%
17.4%
18%
18.4%
18.8%

¡¡Models
XH280M
(72)
XH285M
(72)
XH290M
(72)
XH295M
(72)
XH300M
(72)
XH305M
(72)
¡¡Max. Power (Pmax)
280Wp
285Wp
290Wp
295Wp
300Wp
305Wp
¡¡Optimum Operating Voltage (Vm)
36.52V
36.62V
36.77V
36.92V
37.12V
37.32V
¡¡Optimum Operating Current (Im)
7.67A
7.78A
7.89A
7.99A
8.08A
8.17A
¡¡Open-circuit Voltage (Voc)
45.02V
45.42V
45.72V
45.92V
46.10V
46.28V
¡¡Short-circuit Current (Isc)
8.52A
8.56A
8.59A
8.62A
8.64A
8.67A
¡¡Cells efficiency
16.3%
16.6%
16.9%
17.2%
17.5%
17.8%



¡¡Note

¡¡The specifications are obtained under the Standard Test Condition(STC)£º

¡¡1,000W/©O£¬ Am1.5£¬ Cell Temperature 25¡æ

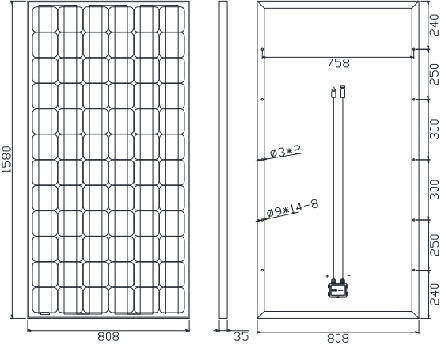

72¡Á5 Mono Series (180Wp-205Wp)

Mono Crystal Solar Panel - Nepal - Kathmandu - energyNP.com

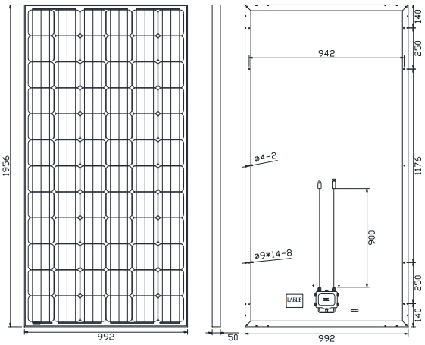

72¡Á6 Mono Series (280Wp-305Wp)

Mono Crystal Solar Panel - Nepal - Kathmandu - energyNP.com

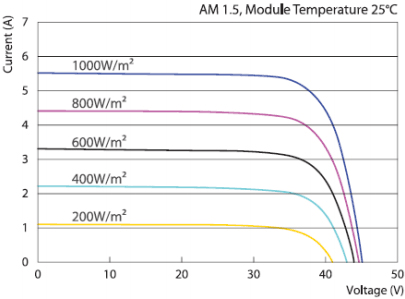

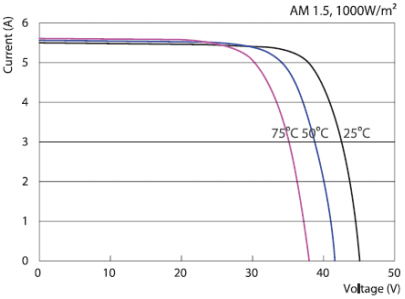

-V CURVE£º72¡Á5 Mono Series (180Wp-205Wp)

Mono Crystal Solar Panel - Nepal - Kathmandu - energyNP.com

Mono Crystal Solar Panel - Nepal - Kathmandu - energyNP.com

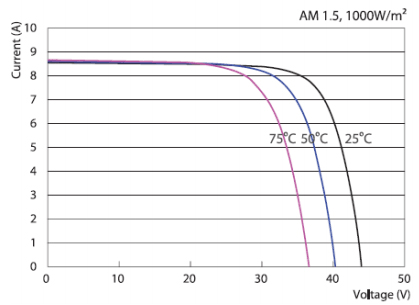

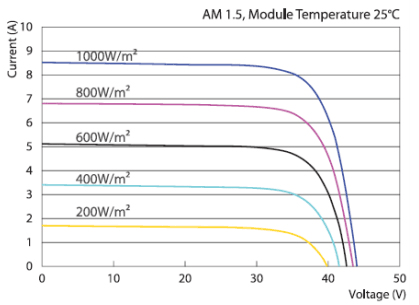

-V CURVE£º72¡Á6 Mono Series (280Wp-305Wp)

Mono Crystal Solar Panel - Nepal - Kathmandu - energyNP.com

Mono Crystal Solar Panel - Nepal - Kathmandu - energyNP.com





¡ö Certification



Mono Crystal Solar Panel - Nepal - Kathmandu - energyNP.com





¡ö The Structure of Solar Modules



- Cell

The hi-efficiency of mono and poly solar cells ensure adequate power for panels.

- Glass

Low-iron tempered glass,3.2mm thickness with higher reflectivity.

- EVA

Higher transmission rate,antioxidant capacity and temperature resistance,no expansion or contraction.

- Back film

Increase efficiency of modules slightly and reduce module's temperature.Aging resistance,corrosion resistance and airtight.

- Aluminum Frame

Using the framework of the anodized aluminum frame with high intensity, mechanical shock resistance capacity.



Mono Crystal Solar Panel - Nepal - Kathmandu - energyNP.com



¡ö Warranty

10-year repair and workmanship warranty

12-year warranty at 90% power output

25-year warranty at 80% power output




¡ö Functional Features

- Applies to commercial, residential applications for on-grid and off-grid applications.

- Produced with strict quality control standards and a worldwide certification program.

- Easily installed on the ground, roof, building face or tracking system.

- Reduces electricity cost and creates energy independently.

- Modular, no moving parts, fully scalable and easily installed.

- Reliable and virtually maintenance-free power generation.

- Helps environment by reducing air, water and land pollution.

- Provides clean, quiet and reliable electricity generation.
