Mono Crystal Solar Panel - Nepal - Kathmandu - energyNP.com

Mono Crystal Solar Panel

(96¡Á5 Mono Series 240Wp~265Wp)

¡¡¡¡¡¡¡¡¡¡




¡¡¡¡¡¡¡¡- 96¡Á5 Mono Series (240Wp-265Wp)

¡¡¡¡¡¡¡¡XH240M(96) / XH245M(96) / XH250M(96) / XH255M(96) / XH260M(96) / XH265M(96)



¡¡Solar Cell ¡¡Mono-crystalline 125¡Á125mm¡¡
¡¡Power Tolerance (Pmax) ¡¡0¡«+3%
¡¡Numbers of cells ¡¡96pcs of cells in series

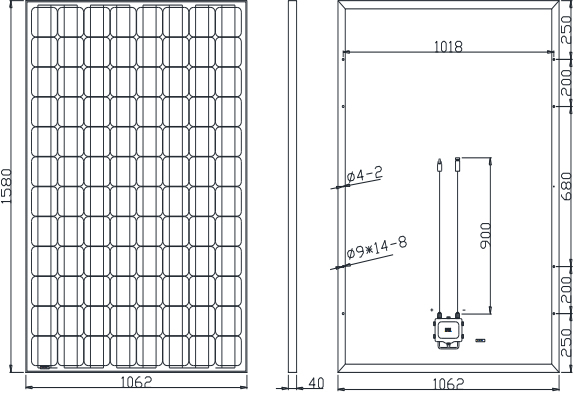

¡¡Module Dimension ¡¡1580¡Á1062¡Á40mm
¡¡Weight ¡¡20kg
¡¡Max. System Voltage ¡¡1000V DC
¡¡Max. Series Fuse Rating ¡¡10A
¡¡Temperature cycling range ¡¡-40¡æ¡«+85¡æ
¡¡NOTC ¡¡47¡æ
¡¡Temperature coefficients of Isc ¡¡(+0.06% /¡æ )
¡¡Temperature coefficients of Voc ¡¡(-0.35% /¡æ )
¡¡Temperature coefficients of Pmax¡¡ ¡¡(-0.4% /¡æ )
¡¡Load Capacity ¡¡264pcs /20'GP
¡¡644pcs /40'GP





¡ö Typical Electrical Characteristics)



Mono Crystal Solar Panel - Nepal - Kathmandu - energyNP.com





¡¡Models
XH240M
(96)
XH245M
(96)
XH250M
(96)
XH255M
(96)
XH260M
(96)
XH265M
(96)
¡¡Max. Power (Pmax)
240Wp
245Wp
250Wp
255Wp
260Wp
265Wp
¡¡Optimum Operating Voltage (Vm)¡¡
48.1V
48.3V
48.7V
48.8V
49.1V
49.3V
¡¡Optimum Operating Current (Im)
4.99A
5.08A
5.14A
5.23A
5.31A
5.38A
¡¡Open-circuit Voltage (Voc)
59.2V
59.4V
59.6V
59.8V
60V
60.2V
¡¡Short-circuit Current (Isc)
5.35A
5.44A
5.55A
5.64A
5.74A
5.82A
¡¡Cells efficiency
16.5%
16.8%
17.2%
17.6%
18%
18.4%



¡¡- Note

¡¡The specifications are obtained under the Standard Test Condition(STC)£º

¡¡1,000W/©O£¬ Am1.5£¬ Cell Temperature 25¡æ

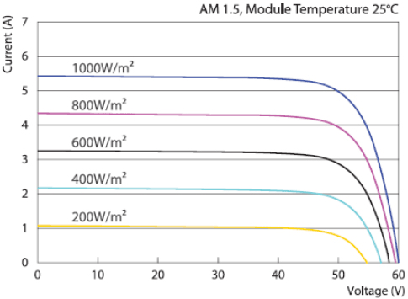

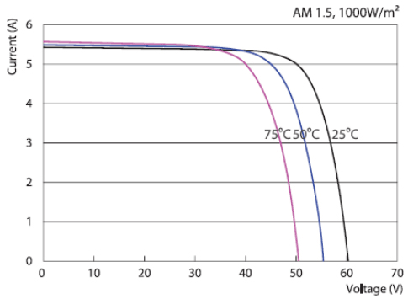

-V CURVE

Mono Crystal Solar Panel - Nepal - Kathmandu - energyNP.com



Mono Crystal Solar Panel - Nepal - Kathmandu - energyNP.com





¡ö Certification



Mono Crystal Solar Panel - Nepal - Kathmandu - energyNP.com





¡ö The Structure of Solar Modules



- Cell

The hi-efficiency of mono and poly solar cells ensure adequate power for panels.

- Glass

Low-iron tempered glass,3.2mm thickness with higher reflectivity.

- EVA

Higher transmission rate,antioxidant capacity and temperature resistance,no expansion or contraction.

- Back film

Increase efficiency of modules slightly and reduce module's temperature.Aging resistance,corrosion resistance and airtight.

- Aluminum Frame

Using the framework of the anodized aluminum frame with high intensity, mechanical shock resistance capacity.



Mono Crystal Solar Panel - Nepal - Kathmandu - energyNP.com



¡ö Warranty

10-year repair and workmanship warranty

12-year warranty at 90% power output

25-year warranty at 80% power output




¡ö Functional Features

- Applies to commercial, residential applications for on-grid and off-grid applications.

- Produced with strict quality control standards and a worldwide certification program.

- Easily installed on the ground, roof, building face or tracking system.

- Reduces electricity cost and creates energy independently.

- Modular, no moving parts, fully scalable and easily installed.

- Reliable and virtually maintenance-free power generation.

- Helps environment by reducing air, water and land pollution.

- Provides clean, quiet and reliable electricity generation.
