Lithium Iron Phoaphate (Lifepo4) Battery

12.8V 100AH (1280WH)

Back to Battery list >>>　

Back to product list >>>　

■ Specification

Electrical 　Characteristics	Nominal Voltage	12.8V
	Nominal Capacity	100AH
	Energy	1280WH
	Internal Resistance(AC)	≤20mΩ

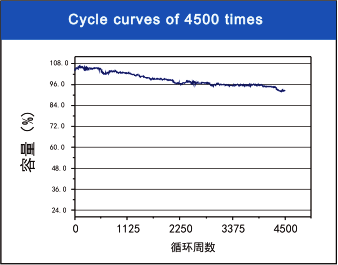

	Cycle Life	>4500 cycles @0.5C 80%DOD
	Months Self Discharge	<3%
	Efficiency of charge	100% @0.5C
	Efficiency of discharge	96-99% @0.5C
Standard 　Charge	Charge Voltage	14.6±0.2V
	Charge Mode	0.5C to 14.6V,then 14.6V charge 　current to 0.02C(CC/CV)
	Charge Current	100A
	Max. Charge Current	100A
	Charge Cut-off Voltage	14.6±0.2V
Standard 　Discharge	Continuous Current	100A
	Max. Pulse Current	120A(<3S)
	Discharge Cut-off Voltage	10V
Environmental	Charge Temperature 　0 to 55 (32F to 131F)	@60±25% Relative Humidity
	Discharge Temperature	-20 to 60 (32F to 131F) 　@60±25% Relative Humidity
	Storage Temperature	-20 to 60 (32F to 131F) 　@60±25% Relative Humidity
	IP Class	IP65
Mechanical	Plastic Case	Metal Plate
	Approx. Dimensions	307×169×208mm
	Approx. Weight	12Kgs
	Terminal	M8

NOTE: This 12.8V series can be used in 4 series to 51.2V, when the battery be used in 4 series, please set charge cut-off voltage to 56V, discharge cut-off voltage to 48V, max charge current to 100A, max discharge current to100A.

Lithium Iron Phoaphate (Lifepo4) Battery 12.8V 100AH (1280WH)-Nepal-Kathmandu

■ Features of LiFePo4 Battery

- The whole module is non-toxic, non-polluting and environmentally friendly

- Cathode material is made from LiFePO4 with safety performance and long cycle life

- Battery management system (BMS) has protection functions including over-discharge, over-charge, over-current and high/low temperature

- Small size and light weight, comfortable for installtion and maintenance

■ Application

- Wheelchairs and scooters

- Solar/wind energy storage

- Back-up power for small UPS

- Golf trolleys & buggies
