Gree Residential Air Conditioner - LOMO - Nepal - Kathmandu - energyNP.com

Gree Residential Air Conditioner

(GWC18QD-K3DNA1B / GWH18QD-K3DNA1B)

(GWC24QE-K3DNA1B / GWH24QE-K3DNA1B)




  ■ Specification



 Model
GWC18QD
-K3DNA1B
GWH18QD
-K3DNA1B
GWC24QE
-K3DNA1B
GWH24QE
-K3DNA1B
Rs 86,000
Rs 1,20,000
Rs 1,05,000
Rs 1,45,000
Cooling
Cooling/Heating
Cooling
Cooling/Heating

 Capacity

Cooling
Btu/h
18000
18000
24000
24000
Heating
Btu/h
/
19005
/
24870

 EER/C.O.P

W/W
3.21
3.21/3.62
3.21
3.21/3.61

 Power Supply

Ph,V,Hz
1Ph,220V~240V,50Hz

 Power Input

Cooling
W
1640
1640
2010
2010
Heating
W
/
1540
/
1870

 Rated Current

Cooling
A
10.86
10.86
11
11
Heating
A
/
11.09
/
12

 Airflow Volume

Indoor
m3/h
(SH/H/M/L)
850/800
/700/570
1100/1000
/950/850

 Indoor Unit

 Sound Pressure
 Level

Indoor
dB(A)
(SH/H/M/L)
47/43/39
/35
46/44/40
/36

 Outline Dimension

W×H×D
mm
970×300
×224
1078×325
×246

 Package Dimension

W×H×D
mm
1041×383
×320
1148×431
×350

 Net Weight/
 Gross Weight

Indoor
Kg
13.5/16.5
13.5/16.5
16/19.5
16/19.5
 Outdoor Unit
 Sound Pressure
 Level
Outdoor
dB(A)
54
55
56
56

 Piping Connection

Gas
mm
φ12
φ12
φ16
φ16
Liquid
mm
φ6
φ6
φ6
φ6

 Outline Dimension

W×H×D
mm
899×596
×378
955×700
×396

 Package Dimension

W×H×D
mm
948×420
×645
1029×458
×750

 Net Weight/
 Gross Weight

Outdoor
Kg
40/43.5
41/44.5
45/50
46/51


 Loading Quantity

40’GP
sets
156
156
118
118
40’HQ
sets
179
179
131
131



1. The product with * is under development, and the parameters are estimated, please refer to the value on nameplates.

2. Gree reserves the right to modify the specifications without prior notice. Please confirm the final specifications with sales representatives.



 ■ LOMO 3 Star
Gree Residential Air Conditioner - LOMO - Nepal - Kathmandu - energyNP.com

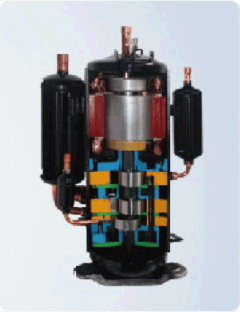

 ■ Triple-cylinder Two-stage Rotary Compressor of Variable Volume Ratio

Gree self-developed technology "triple-cylinder two-stage totary compressor of cariable colume ratio" achieves reliable heating preformance in ultra-low ambient temperature. This technology greatly improves the heating capacity of air comditioner in extreme cold environment. Heating capacity will not be decreased even when outdoor ambient temperature is as low as -20℃. It's accredited by expert team as "world leading" level.

Gree Residential Air Conditioner - LOMO - Nepal - Kathmandu - energyNP.com

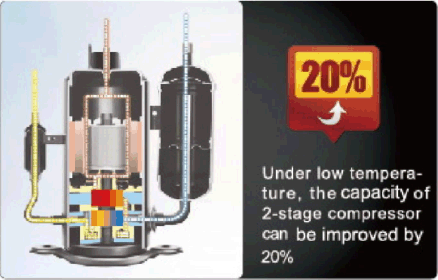

 ■ Two-Stage Compressor
Gree Residential Air Conditioner - LOMO - Nepal - Kathmandu - energyNP.com
  VS   Gree Residential Air Conditioner - LOMO - Nepal - Kathmandu - energyNP.com


Gree 2-stage inverter compressor
Conventional inverter compressor
Applicable temperature range
Gree Residential Air Conditioner - LOMO - Nepal - Kathmandu - energyNP.com
Gree Residential Air Conditioner - LOMO - Nepal - Kathmandu - energyNP.com
 Reliable operation within -30℃~54℃  Reliable operation within -15℃~43℃
Cooling (heating) capacity
Gree Residential Air Conditioner - LOMO - Nepal - Kathmandu - energyNP.com
Gree Residential Air Conditioner - LOMO - Nepal - Kathmandu - energyNP.com
  Heating capacity is improved by 30%

  Cooling capacity is improved by 35%

 Heating capacity and cooling capacity
 are not improved
Air outlet temperature
Gree Residential Air Conditioner - LOMO - Nepal - Kathmandu - energyNP.com
Gree Residential Air Conditioner - LOMO - Nepal - Kathmandu - energyNP.com
 The highest temperature at outlet is
 52℃ in heating mode;

 The lowest temperature at air outlet
  is 12℃ in cooling mode.

 The highest temperature at outlet is
 40℃ in heating mode;

 The lowest temperature at air outlet
 is 17℃ in cooling mode.

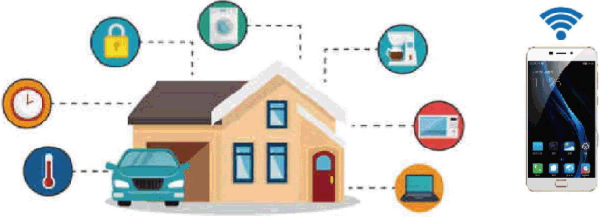

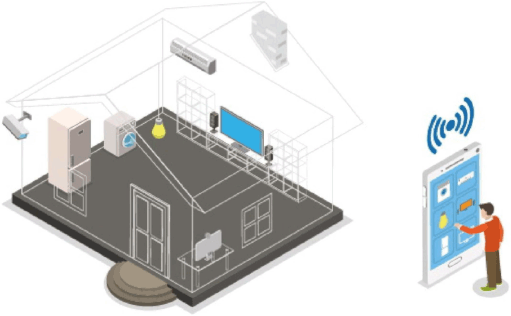

 ■ GREE SMART LIFE



New Generation WIFI Control*

When installing Gree special APP "Smart Gree" on smart terminal and setting short distance mode or long distance mode, the air conditioner can be controlled by the smart terminal.





Gree Residential Air Conditioner - LOMO - Nepal - Kathmandu - energyNP.com

Short Distance Mode:

Smart terminal can connect to the air conditioner directly for remote control, no need wireless router, which is applicable for short distance control at home.





Gree Residential Air Conditioner - LOMO - Nepal - Kathmandu - energyNP.com

Long Distance Mode:

Users bind air conditioner, wireless router and Gree Cloud Platform together. When the smart terminal is connected to internet, log on Gree Cloud Platform can remotely control the air conditioner, which is applicable for long distance control.

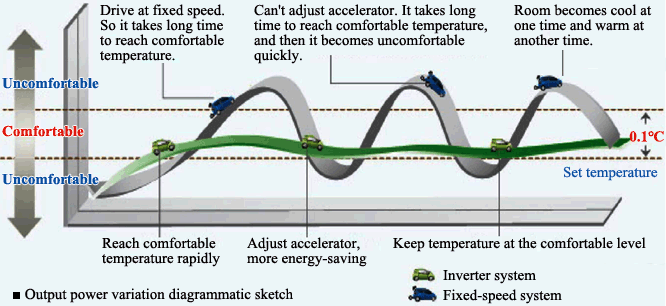

■ How Inverter Saves Energy
Gree Residential Air Conditioner - LOMO - Nepal - Kathmandu - energyNP.com


■ Intelligent Defrosting

Adopting advanced and unique intelligent defrosting mode, Gree WIFI intelligent defrosting proprietary technology overcomes the defrosting defect of mechanical defrosting mode. It senses the frosting dondition intelligently and only conduct defrosting when there is frost, which not only save energy, but also improve the heating effect.

Gree Residential Air Conditioner - LOMO - Nepal - Kathmandu - energyNP.com



Gree Residential Air Conditioner - LOMO - Nepal - Kathmandu - energyNP.com


Gree Residential Air Conditioner - LOMO - Nepal - Kathmandu - energyNP.com

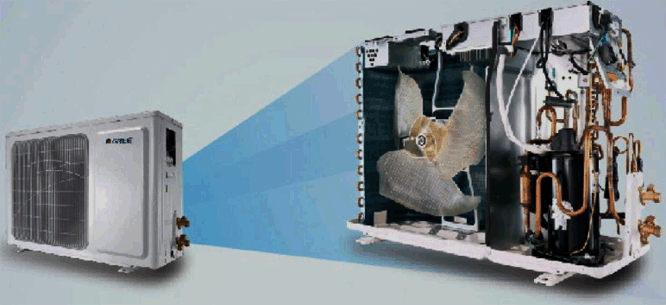

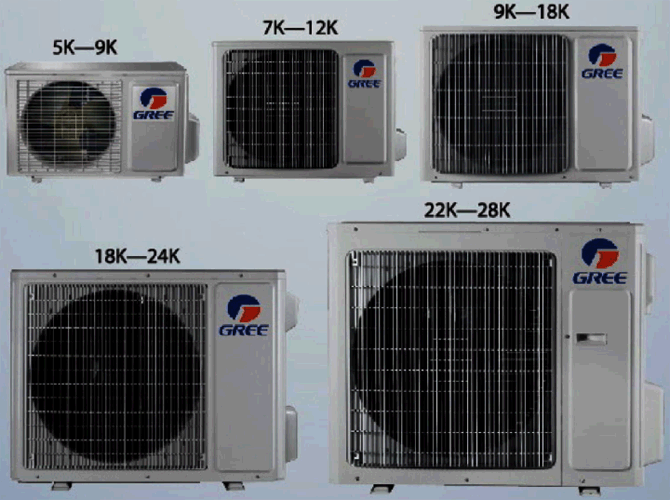

■ Outdoor Unit Models

Gree outdoor unit, with high-strength body, thickened Al-Zn alloy coated steel sheet and reinforced stamping, has improved the load of structure greatly to prolong the durability of outdoor unit.



Gree Residential Air Conditioner - LOMO - Nepal - Kathmandu - energyNP.com

Gree Residential Air Conditioner - LOMO - Nepal - Kathmandu - energyNP.com


■ High-efficiency drainage design of outdoor unit chassis

The high-efficiency drainage design of outdoor unit chassis can drain water effectively under extreme conditions, to prevent serious icing.

Gree Residential Air Conditioner - LOMO - Nepal - Kathmandu - energyNP.com
Gree Residential Air Conditioner - LOMO - Nepal - Kathmandu - energyNP.com

■ Mothproof and dustproof electric box of outdoor unit

Electric box of outdoor unit is mothproof and dustproof, which is more reliable for outdoor operation.

■ Anti-corrosive Golden/Blue Fin

For some humid or coastal areas, Gree air conditioner adopts special anti-corrosive black aluminum foil with corrosion resistance up to 1500h and acid resistance up to 300h. Its anti-corrosive effect is better than mormal fin, which enables long service life for the unit.

Gree Residential Air Conditioner - LOMO - Nepal - Kathmandu - energyNP.com
Gree Residential Air Conditioner - LOMO - Nepal - Kathmandu - energyNP.com

■ Improved Base Pan Design

Condensing water will flow easily and not be frozen on the base pan. It also improves the heating efficiency during low temp operation.

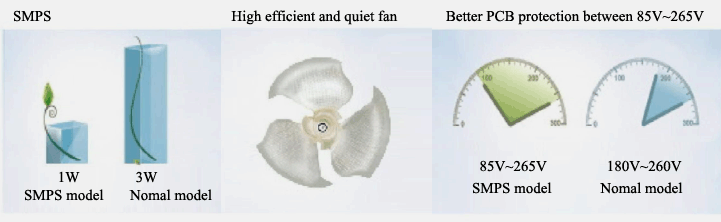

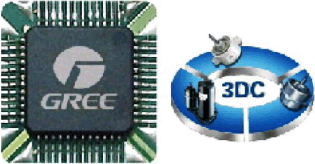

■ Control System

Cutting-edge chip for precise inverter control

Gree Residential Air Conditioner - LOMO - Nepal - Kathmandu - energyNP.com
Gree Residential Air Conditioner - LOMO - Nepal - Kathmandu - energyNP.com

■ High Temp Resistance PCB

In the inverter outdoor unit, the PCB could work well even when temperature is up to 85℃. The metal casing is fireproof.

■ Refrigerant leakage protection

When refrigerant is insufficient and the value is blocked, the indoor unit of air conditioner will display the error code "F0" and then stop operation. This function effectively protects the whole unit and safeguard the compressor again any damages caused by refrigerant leakage because of high temperature.

Gree Residential Air Conditioner - LOMO - Nepal - Kathmandu - energyNP.com

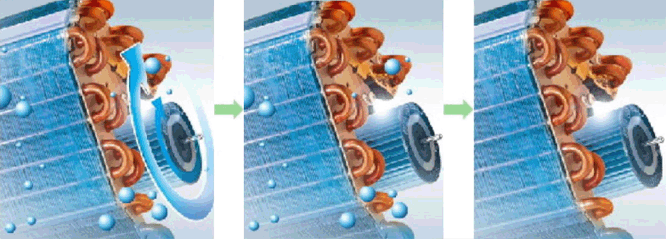

■ Auto Clean (X-FAN)

The cross fan continuous to blow to dry the inner side of indoor unit when the unit is tumed off for keep it clean and healthy.



Gree Residential Air Conditioner - LOMO - Nepal - Kathmandu - energyNP.com

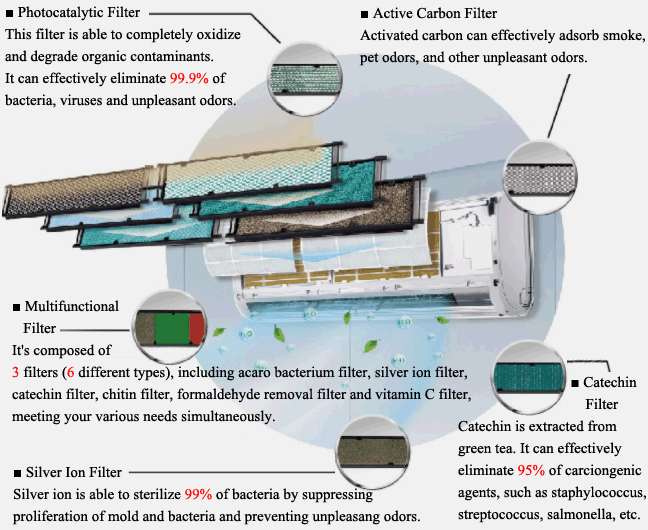

■ High Density Filter

Higher density filer can efficiently prevent tiny dust and pollen in air from entering into the unit, keeping you away from dust particles for enjoying healthy and natural wind at any time.

Gree Residential Air Conditioner - LOMO - Nepal - Kathmandu - energyNP.com
Gree Residential Air Conditioner - LOMO - Nepal - Kathmandu - energyNP.com

■ Cold Plasma

Effective sterilization and bacteria/odor removal. Provide the air with more nagative oxygen ions.

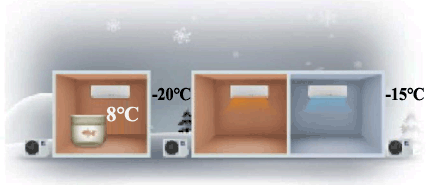

8℃ Heating

Maintain the room temperature steadily at 8℃ and prevent the room from freezing by heating operation when nobody is at home for long time in the severe cold winter.

-15℃ Cooling

The unit operates stably under cooling mode at -15℃. As the outdoor temperature changes, the frequency of compressor and the fan speed will be adjusted accordingly.

-20℃ Heating

The unit operates stably under heating mode at -20℃. It is supported by GREE's electrical heating chassis, preheating technology and frequency-adjusting compressor.



■ Low Ambient Temperature

Gree Residential Air Conditioner - LOMO - Nepal - Kathmandu - energyNP.com

Gree Residential Air Conditioner - LOMO - Nepal - Kathmandu - energyNP.com

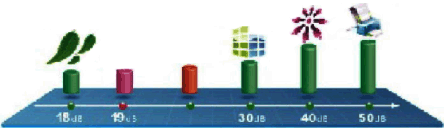

■ Low Noise

Noise is as low as 19dB, making you feel like staying on the moon

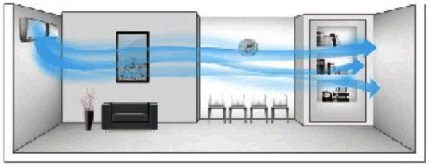

■ Turbo Cooling

Press "Turbo" button on remote controller for big air flow, which enables the indoor temperature to reach the set temperature in a shorter time.

Gree Residential Air Conditioner - LOMO - Nepal - Kathmandu - energyNP.com
■ Comfortable Sleep Mode

Gree Residential Air Conditioner - LOMO - Nepal - Kathmandu - energyNP.com

Sound sleep mode

Set temperature is close to body temperature and it will be adjusted automatically and intelligently.

Gree Residential Air Conditioner - LOMO - Nepal - Kathmandu - energyNP.com

Good sleep mode

Before your getting up, set temperature will decrease or increase automatically to refresh you in the morning.

Gree Residential Air Conditioner - LOMO - Nepal - Kathmandu - energyNP.com

Siesta mode

Set temperature will be adjusted according to the characteristics of siesta, which can effectively increase the quality of siesta.

DIY mode

Set the temperature curve and sleep time as you like.


■ GREE Achievements

Gree Residential Air Conditioner - LOMO - Nepal - Kathmandu - energyNP.com

Gree Residential Air Conditioner - LOMO - Nepal - Kathmandu - energyNP.com
