High Frequency Online UPS - Nepal - Kathmandu - energyNP.com

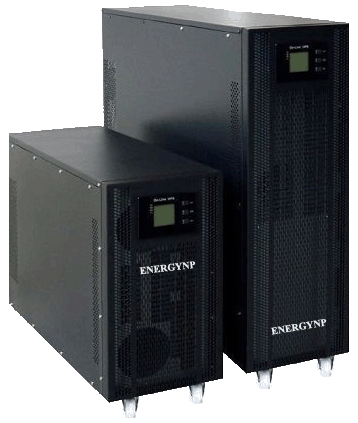

High Frequency Online UPS (3/3)

(20KVA / 30KVA)






■ Specification

 Model
H20
H30
H40
H60
H80
 Price (Rs.)
574,000
669,000
/
/
/
 Rated Capacity (PF=0.9)  18 KW  27 KW  36 KW  54 KW  72 KW
 Input  Wiring mode  Three-phase four-wire+G
 Rated voltage  380/400/415Vac
 Voltage range  208~478Vac
 Frequency range  45-55Hz at 50Hz/54-66Hz at 60Hz (Adaptive)
 Power factor  ≥0.99
 Input current
 harmonic distortion
 ≤3% (100% Nonlinear load)
 Bypass range

 Bypass protection voltage upper limit:

   220V:+25%(+10%、+15%、+20% optional)
   230V:+20%(+10%、+15% optional)
   240V:+15%(+10% optional)

 Bypass protection voltage lower limit:

   -45%( -20%、-30% optional)

 Bypass frequency protection range:±10%

 Output  Wiring mode  Three-phase four-wire+G
 Rated voltage  380/400/415Vac
 Power factor  0.9
 Voltage accuracy  ±1%
 Frequency  Main
 mode
 Synchronize with input;
 When the mains frequency exceeds±10%
 (Can be set±1%、±2%、±4%、±5%),
 Output frequency is 50×(±0.2) Hz
 Battery
 mode
 (50/60±0.2%) Hz
 Crest ratio  3:1
 Output voltage distortion  ≤2% Linear load  ≤5% Nonlinear load
 Efficiency  Normal mode≥93.5%  Normal mode≥94.5%
 Battery  DC Voltage  Optional: ±192V\±216V\±240V DC (32 pcs/36 pcs /40 pcs)
 Charging current  10A max  20A max
 Switching time  Mains mode to bypass mode: 0ms (tracking);
 mains mode to battery mode: 0ms
 Protection  Overload
 capacity
 Normal
  mode
 Load≤110%, for 60min,≤125%, for 10min,≤150%,
 for 1min,≥150%, shut down immediately
 Over temperature
 protection
 Normal mode: Switch to bypass mode; Battery mode:
 Immediately turn off the output
 EPO  Immediately turn off the output
 Communication interface  USB, RS485, Dry contact, parallel (optional),
 SNMP card (optional), relay card (optional)
 Working
environment
 Operating temperature  0℃~40℃
 Stored temperature  -25℃~55℃
 Relative humidity  0~95% No condensation
 Altitude  < 1500m,When it exceeds 1500m,
 it will be derated according to GB/T 3859.2.
 Physical
characteristics
 Dimension (D×W×H)  703×252×532 mm  690×252×960 mm
 Weight (net weight)  36.5 kg  70 kg
 Standards compliant  YD/T1095-2008

■ Application area

Widely used in network management center, bank securities, tax, communications, postal, radio and television, public security, transportation, electricity, medical, industrial control, national defense and other important data fields.

■ Product introduction

Power range: 20KVA~80KVA

Working mode: three in three out online mode

Product introduction: Digital series - high frequency UPS power supply, equipped with dual DSP controllers, rectifier, inverter, charging and discharging all realize digital control of DSP, independent current sharing control of power module, no single point fault risk, is a high-end power supply product integrating the advanced technology of power electronics. Innovative design makes this series of products have unparalleled reliability and high performance. Extremely high input power factor and very low input current distortion rate ensure the green and environmental protection of the product, and the high efficiency of the whole machine ensures the energy saving of the product. This series of products can run directly in parallel with 8 machines.

■ Performance characteristics

1. Three-in-three-out pure on-line Dual-Conversion products, support 380/400/415V, 50/60Hz power grid system, provide the best quality of power supply and load protection.

2. Super load adaptability, super overload and short circuit capability.

3. Ultra-wide input voltage and frequency range, adapted to harsh grid environment, adapted to all kinds of fuel generator access.

4. The input power factor is as high as 0.99, the input harmonic current is less than 3%, the efficiency of the whole machine is more than 95%. It is green, efficient and energy-saving.

5. Full digital control of DSP realizes all digital control of power conversion links of rectification, inversion, charging and discharging.

6. Digital circulation control technology with high reliability.

7. Intelligent battery management scheme to extend battery life.

8. The system adopts modular design and has stable and reliable performance.

9. All fans in the system adopt redundant design, which greatly improves the reliability of the system.

10. EPO emergency shutdown function can be realized.

11. Extra-long average failure-free time (>200,000 h) and ultra-low average maintenance time (<0.5 h).

12. Rich options: dust-proof network, SNMP network communication card, lightning protection module, battery temperature compensator, mobile phone short message alarm.

13. Ail circuit boards adopt three-proof technology.

14. The traditional modular machine can be replaced by parallel machine, which saves the high cost of modular cabinet.
